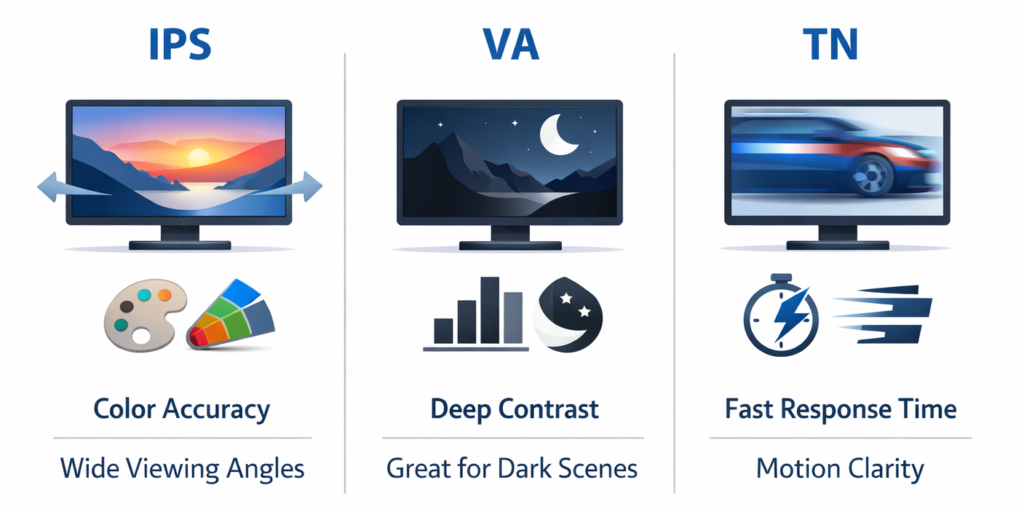

Monitor Panel Types Explained: IPS vs VA vs TN

Choosing a new monitor often starts with obvious specs: resolution, refresh rate, screen size. But once you start comparing options more closely, you’ll quickly run into a more technical question: IPS vs VA vs TN. These are the three main LCD panel technologies, and they influence far more than most spec sheets suggest.

IPS, VA, and TN panels behave differently because of how their liquid crystals align and control light, which leads to major differences in color accuracy, contrast, motion, and viewing angles.

Refresh rate and resolution tell you how many frames a display can show and how sharp it looks. They do not tell you how accurate the colors are, how deep the blacks appear, how stable the image looks from different angles, or how clean motion appears during fast gameplay. Those characteristics are largely determined by panel type.

This guide breaks down the major monitor panel types in clear, practical terms. Whether you’re a competitive gamer, a content creator, or simply upgrading your desk setup, understanding IPS, VA, and TN will help you choose based on how you actually use your display—not just what looks good on paper.

Color, Contrast, and Viewing Angles Basics

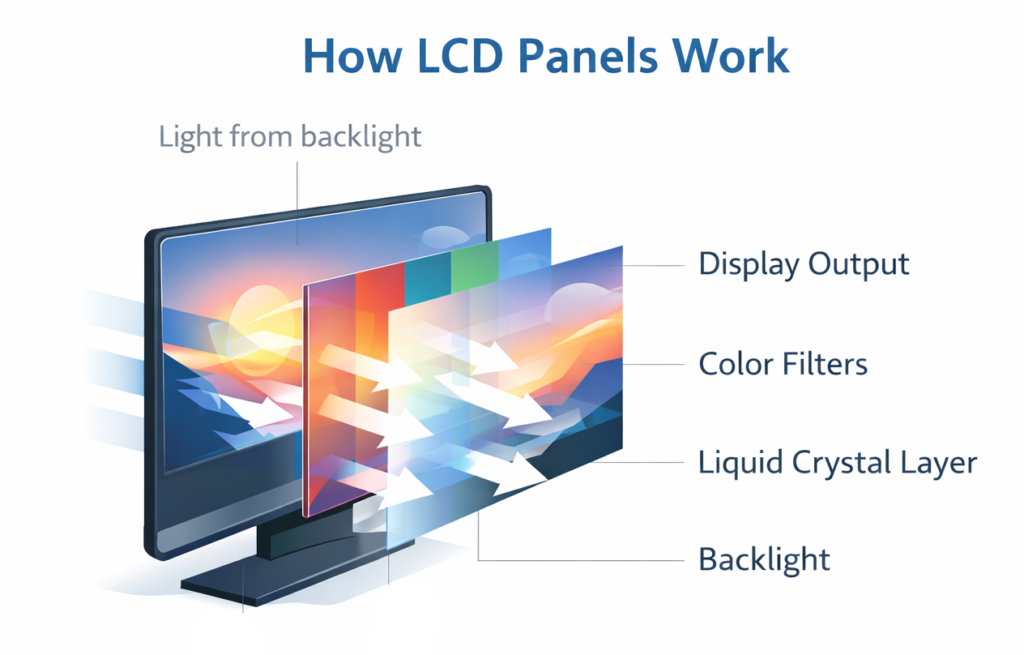

Before comparing IPS vs VA vs TN directly, it helps to understand how LCD monitors work at a high level.

All three are types of LCD (liquid crystal display) panels. They rely on a backlight that shines through liquid crystals, which twist and align to control how much light passes through color filters. The way those crystals are arranged and how they move is what differentiates IPS, VA, and TN.

Several key performance traits are affected by this structure:

Color accuracy refers to how closely a monitor reproduces intended colors. For creators and editors, this is critical. For gaming and everyday use, it still affects how natural or vibrant content appears.

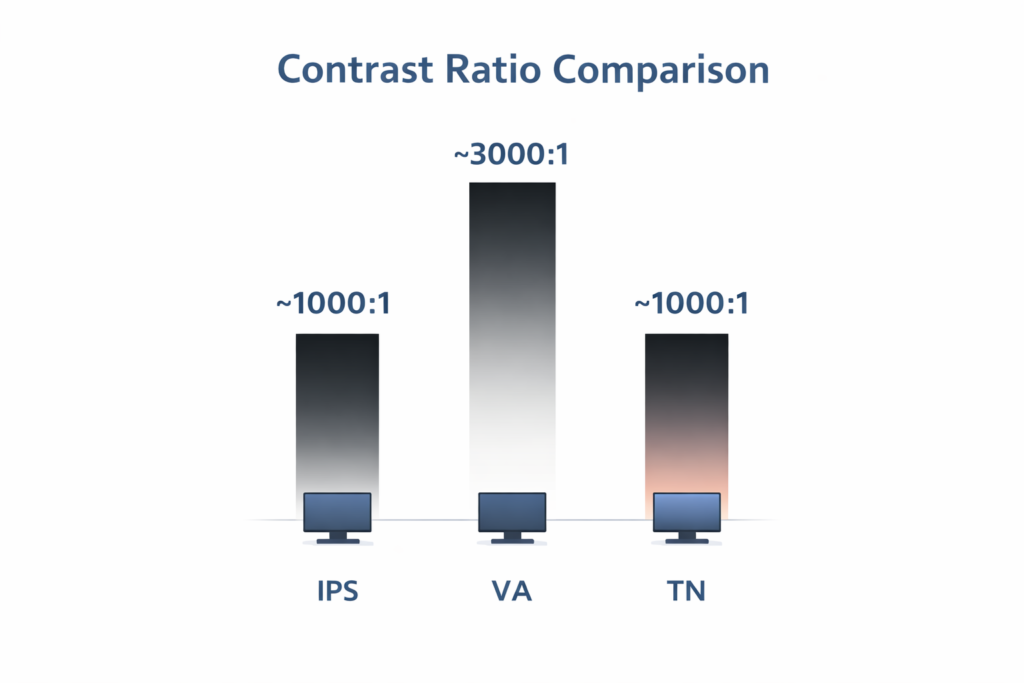

Contrast ratio measures the difference between the brightest white and the darkest black a panel can display. Higher contrast generally means deeper blacks and more perceived depth in darker scenes.

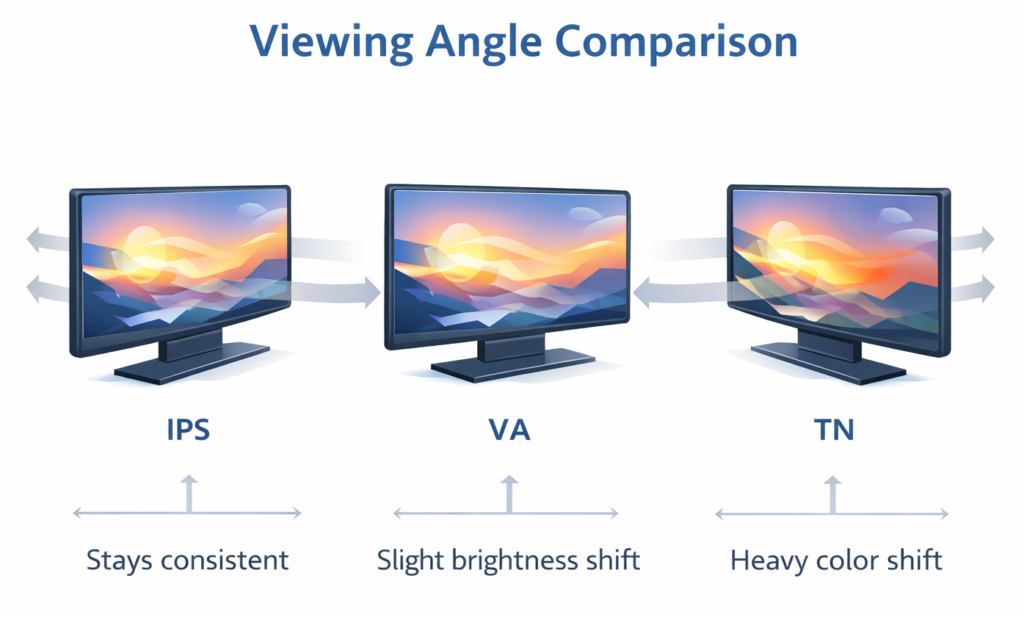

Viewing angles describe how consistent the image looks when viewed from the side, above, or below. Poor viewing angles can cause color shifting and brightness loss.

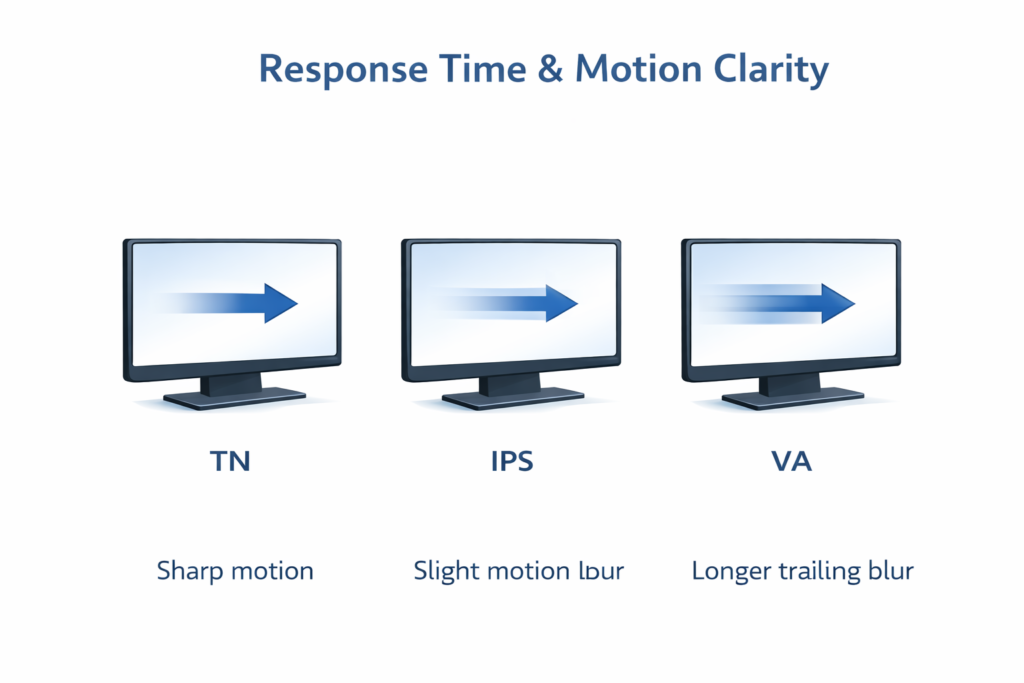

Response time is how quickly a pixel transitions from one color value to another. Slower transitions can lead to motion blur or visible trails behind moving objects.

Different monitor panel types handle these characteristics differently. That’s why two monitors with the same resolution and refresh rate can look and feel noticeably different in real use.

IPS: Color Accuracy & Uniformity

IPS stands for In-Plane Switching. In this design, liquid crystals rotate parallel to the panel surface, rather than tilting vertically. This structural difference improves consistency and stability in how light passes through the display.

If you’ve ever asked “what is IPS monitor?” the simplest answer is this: IPS panels prioritize color accuracy and viewing angle performance.

Strengths

IPS panels are widely known for strong color accuracy and uniformity. They typically cover a large portion of sRGB and often extended color spaces like DCI-P3. For photo editing, video work, and design, this makes IPS a common choice for a content creation monitor.

Viewing angles are also a major strength. Even when viewed off-center, IPS displays tend to maintain consistent brightness and color. This matters for larger screens, ultrawide layouts, and shared workspaces.

Modern IPS panels, especially fast IPS variants, have also improved response times significantly. Many competitive gaming monitors now use IPS technology while still offering high refresh rates and low motion blur.

Weaknesses

The main trade-off is contrast ratio. Typical IPS contrast ratios hover around 1000:1, which is lower than most VA panels. In darker rooms, blacks can appear more gray than deep black.

IPS glow is another commonly discussed issue. This is a faint glow that can appear in dark scenes, especially toward the corners of the screen. It differs from backlight bleed, which is uneven light leakage due to panel assembly.

When comparing IPS panel vs VA panel, IPS usually wins in color consistency and viewing angles but loses in black depth and native contrast.

Ideal Use Cases

IPS is well suited for:

  • Content creation

  • General productivity

  • Mixed gaming and work setups

  • Users who care about color accuracy and consistency

VA: Contrast King (but watch for smearing)

VA stands for Vertical Alignment. In this design, liquid crystals align vertically when blocking light, allowing for stronger light control in darker scenes.

If you’re wondering “what is VA panel?” think high contrast and deeper blacks.

Strengths

VA panels typically offer contrast ratios between 2500:1 and 4000:1, sometimes higher. This results in noticeably deeper blacks compared to IPS and TN. In dark games, movies, or dim rooms, VA panels can create a more immersive experience.

For story-driven games and cinematic content, this added contrast enhances perceived depth and shadow detail.

Weaknesses

The main drawback is pixel transition behavior. Some VA panels struggle with slower transitions in dark-to-dark changes, which can lead to black smearing. This appears as faint trails in dark scenes during motion.

When discussing VA vs IPS for gaming, this is often the deciding factor. IPS may produce cleaner motion in fast-paced shooters, while VA can look better in darker, slower-paced titles.

Viewing angles on VA panels are generally better than TN but not as stable as IPS. Slight shifts in brightness or color can occur when viewed off-center.

Ideal Use Cases

VA works well for:

  • Story-driven and cinematic games

  • Movie watching

  • Dark-room environments

  • Users who prioritize contrast ratio over absolute color precision

TN: Speed First (trade-offs in color)

TN stands for Twisted Nematic. It is one of the oldest LCD panel types and was historically dominant in competitive gaming monitors.

If you’re asking “what is TN panel?” the short answer is speed-focused LCD technology with compromises in color and viewing angles.

Strengths

TN panels have traditionally offered very fast response times and low input lag. For years, they were the go-to choice for competitive FPS players who valued motion clarity above all else.

They also tend to be more affordable, which made them common in entry-level high refresh rate displays.

Weaknesses

TN panels have weaker color reproduction and narrower viewing angles. Colors can appear less vibrant, and the image shifts noticeably when viewed from different angles.

In a direct TN vs IPS comparison, IPS almost always wins in color accuracy and overall image quality. As IPS and fast IPS panels have improved, the performance gap in response time has narrowed significantly.

Is TN Still Relevant in 2026?

In 2026, TN is less common in premium displays. Many competitive gaming monitors now use fast IPS panels that offer similar response times with better color performance. TN may still appear in budget-focused high refresh rate options, but it is no longer the default choice for performance-oriented setups.

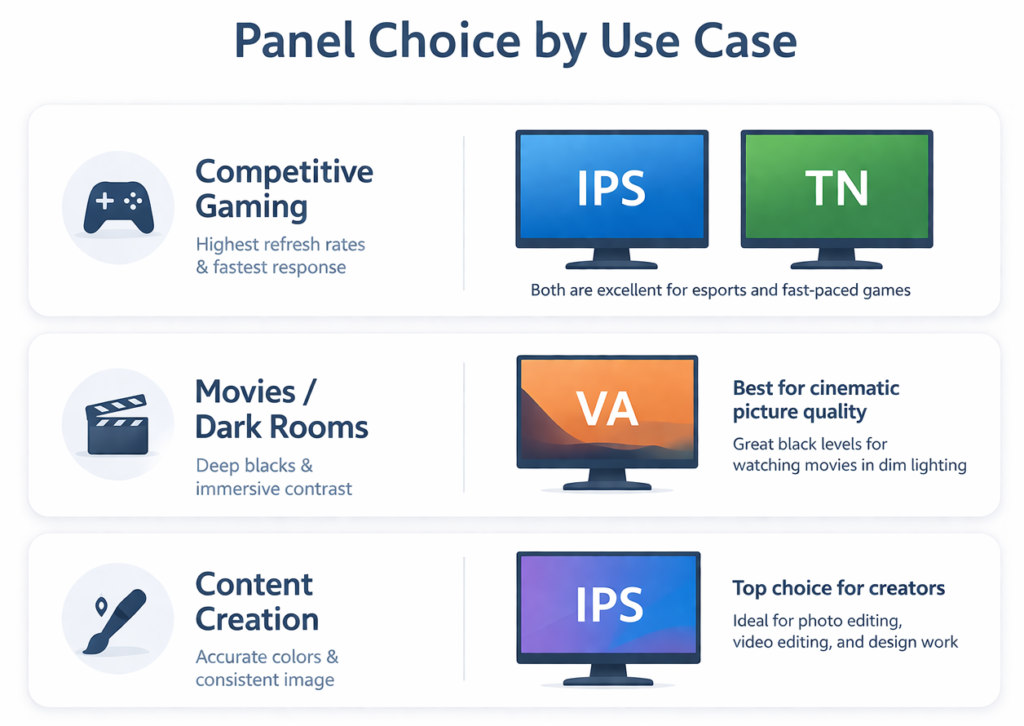

Which Panel for Your Use Case

There is no single best monitor panel type for everyone. The right choice depends on what you value most.

Competitive FPS

For fast-paced shooters, response time and motion clarity matter most. Historically, TN dominated this space. Today, fast IPS panels provide similar speed with better color and viewing angles.

VA can work, but some panels may exhibit black smearing in dark scenes. If motion clarity is your top priority, modern IPS panels are generally the safer choice.

If you’re comparing actual models, see our Top 10 Gaming Monitors guide for performance-focused options.

Story Games

For cinematic, single-player titles, contrast ratio and black depth can enhance immersion. VA panels often excel here due to deeper blacks.

IPS still performs well, especially in brighter rooms, but VA may provide a more dramatic image in dark scenes.

For immersive widescreen setups, explore our Top 10 Ultrawide Monitors list.

Content Creation

For editing photos or video, color accuracy and consistency are critical. IPS panels are typically preferred due to stable viewing angles and more reliable color reproduction.

If you’re building a creative workspace, our Top 10 Curved Monitors guide break down strong productivity-focused displays.

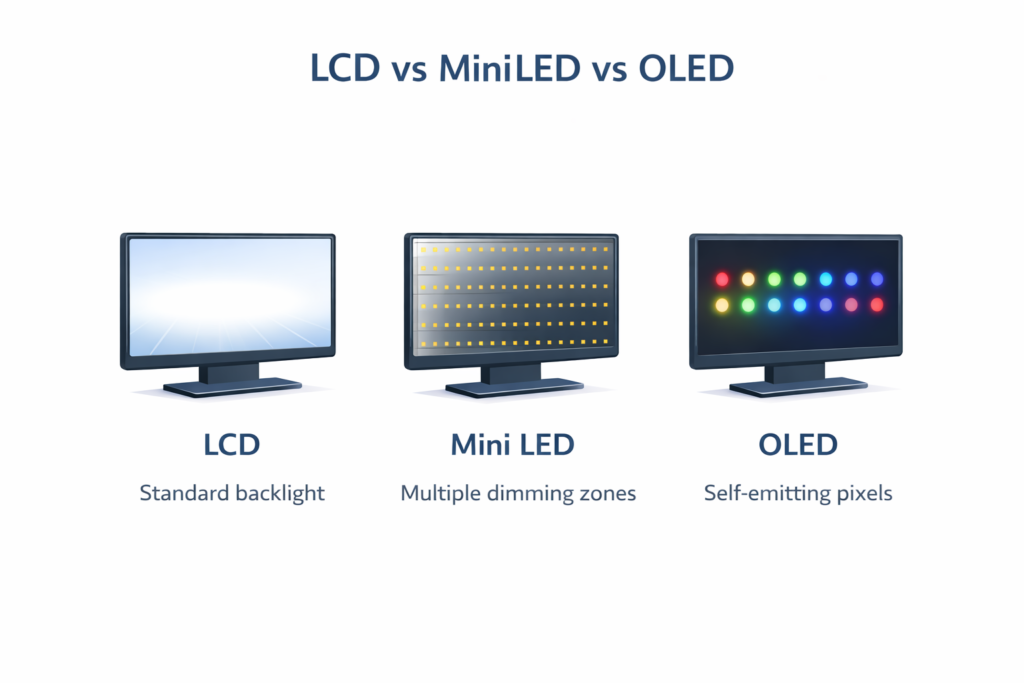

Newer Tech: Fast IPS, Mini-LED, OLED (overview)

Panel technology continues to evolve beyond traditional IPS, VA, and TN.

Fast IPS improves pixel transition speeds while maintaining IPS color and viewing angle benefits. Many high refresh rate gaming monitors now use fast IPS to balance speed and image quality.

Mini-LED refers to a backlighting improvement rather than a new LCD panel type. A mini-LED monitor uses hundreds or thousands of small dimming zones to improve contrast and HDR performance. It can significantly improve black levels compared to standard edge-lit designs.

OLED differs fundamentally from LCD. Instead of using a backlight, each pixel emits its own light. This allows for near-infinite contrast ratios and true blacks. In OLED vs IPS comparisons, OLED wins in contrast and response time, while IPS often avoids burn-in concerns and can reach higher sustained brightness in some use cases.

OLED is increasingly common in premium displays, but IPS and VA remain dominant in mainstream monitor panel types.

Calibration & Simple Settings to Try

Regardless of panel type, proper setup can improve image quality.

Start by adjusting brightness to match your room lighting. Many monitors ship too bright out of the box.

Check contrast settings and avoid pushing them to extremes, as this can crush shadow detail.

Enable overdrive carefully. Higher overdrive settings can reduce motion blur but may introduce inverse ghosting. Moderate settings are often more balanced.

Set color temperature to a neutral value, typically around 6500K. For web content and general use, sRGB mode can improve color consistency.

For precise work, a hardware calibration tool can measure and adjust color accuracy more reliably than manual tweaks.

Frequently Asked Questions

Is VA good for FPS?

VA can be good for FPS, but it depends on the specific panel implementation. Some modern VA panels have improved response times and reduced smearing, making them viable for competitive play.

However, darker scenes can still expose black smearing in certain models. In very fast shooters, this may reduce motion clarity compared to fast IPS panels.

If your focus is high-level competitive play, IPS often provides more consistent pixel transitions. If you split time between competitive and cinematic titles, VA may still be a balanced option.

Is IPS glow the same as backlight bleed?

No. IPS glow is a characteristic of IPS panel structure and appears as a faint glow in dark scenes, often visible from angles.

Backlight bleed is a manufacturing issue where light leaks unevenly around the edges of the panel. It can occur in IPS, VA, or TN displays.

While both affect dark-scene performance, they have different causes. IPS glow is inherent to the technology; backlight bleed varies by unit quality.

Is TN still worth buying in 2026?

TN can still make sense in specific cases, particularly in budget-focused high refresh rate monitors.

However, with improvements in fast IPS, the gap in response time has narrowed significantly. For most users, IPS now provides better overall image quality with similar speed.

Unless cost is the primary factor, many buyers prefer IPS over TN in 2026.

IPS vs OLED for mixed use?

For mixed use—gaming, work, and media—both IPS and OLED can work well.

OLED offers superior contrast ratio and near-instant pixel response, which benefits both gaming and movie watching. However, OLED panels can be more expensive and may require attention to static content usage.

IPS provides strong color accuracy, stable viewing angles, and fewer long-term image retention concerns. For bright office environments and extended desktop use, IPS remains practical.

The better choice depends on budget, room lighting, and how heavily you prioritize black depth and HDR performance.

Understanding monitor panel types allows you to make a decision based on real-world priorities. IPS emphasizes color accuracy and consistency, VA delivers stronger contrast and deeper blacks, and TN focuses on speed with visual trade-offs. Rather than chasing a single specification, choose the panel that aligns with how you use your display every day.
